Brand Name : OEM/ODM
Model Number : DSQ, S275JR, IS 2041 R260, Q245 R, AH 36, DH36, EH36
Certification : SGS, TUV, ISO, CE
Place of Origin : Mainland,China
MOQ : 1 Ton
Price : Price can be negotiated
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 5000 Tons Per Month
Delivery Time : 7-20 working days
Packaging Details : Standard Shipping Packaging
Application : Construction, Shipbuilding, Machinery, etc.
Edge : Mill, Slit, Round
Length : 1000-12000mm
Special Use : High-strength Steel Plate
Standard : ASTM, JIS, GB, AISI, DIN, BS
Surface Treatment : Coated, Galvanized, etc.
Technique : Hot Rolled, Cold Rolled
Thickness : 0.2-4.0mm
Tolerance : ±0.02mm
Width : 1000-2000mm
ASTM 1008 C45 Carbon Steel Plate Mild Steel Plate A36 Hot Rolled Plate Exporter
C45 grade steel is a medium carbon steel offering moderate tensile strengths. The
material is capable of through hardening by quenching and tempering on limited sections
but can also be flame or induction hardened to Hrc 55. This grade is most commonly supplied
in an untreated or normalised condition and is available in several variations (denoted by additional letters)
which offer slight modifications of chemical composition. Machinability similar to that of mild steel can be
expected, however weldability is reduced.
C45 EN 10083-2 Number:1.0503 | Comparisons of steel grades | |
---|---|---|
JIS G 4051 | S 45 C | |
DIN 17200 | C 45 | |
NFA 33-101 | AF65-C 45 | |
UNI 7846 | C 45 | |
BS 970 | 070 M 46 | |
UNE 36011 | C 45 k | |
SAE J 403-AISI | 1042/1045 |
Grade | C(%)min-max | Si(%)min-max | Mn(%)min-max | P(%)max | S(%)max | Cr(%)min-max |
---|---|---|---|---|---|---|
C45 | 0.42-0.50 | 0.15-0.35 | 0.50-0.80 | 0.025 | 0.025 | 0.20-0.40 |
Grade | Condition | Yield Strength R°(Mpa) | Tensile Strength Rm (Mpa) | Elon- gation A5(%) | Hardness HRC | Quenching Temperature (℃) | Benda- bility | Nominal Thickness,t 1.95mm≤t≤10.0mm | |
---|---|---|---|---|---|---|---|---|---|
Rolled | Annealed | ||||||||
C45 | Rolled Annealed Water-quenched Oil quenched | 460 330 | 750 540 2270 1980 | 18 30 | 58 55 | 820 860 | Min.reco-mmended Bending radius (≤90°) | 2.0 ×t | 1.0×t |
Samples
![]() |

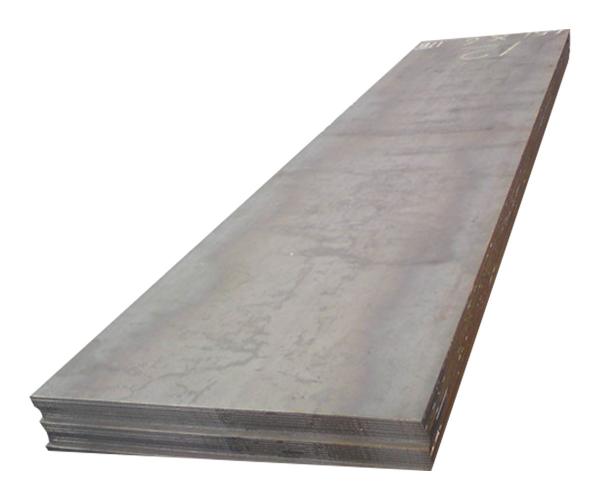

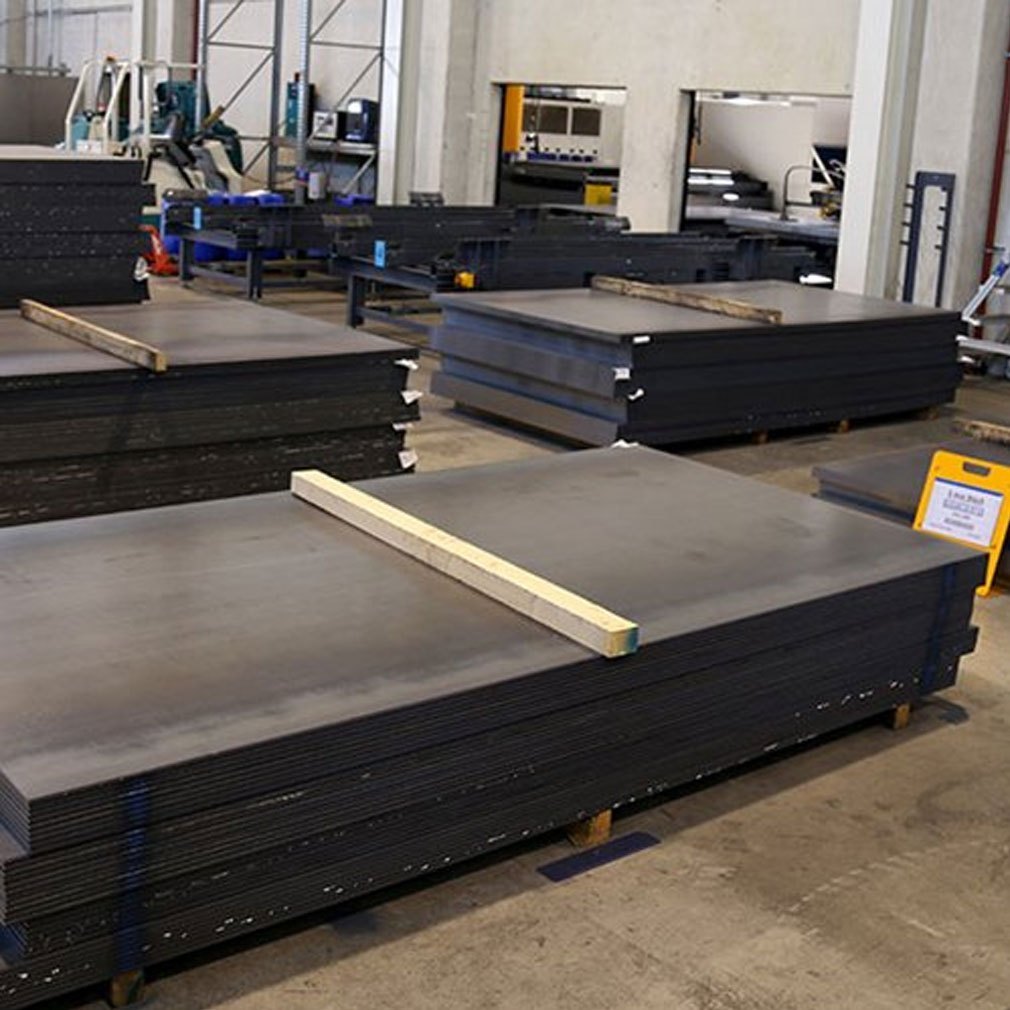

ASTM 1008 Carbon Steel Plate Mild Steel Plate A36 Hot Rolled Plate Exporter Images |
